LIGHT
Weight↓55kg+
Transport more
FAST
Fast Speed >90km/h
Fast Charging ≤48min
ECONOMY
Fuel Saving 7200L/year
Carbon Reducing 19ton/year
LONGER
Range↑240-500km
Improve Efficiency
SMART
Leading  Wire Control Chassis
Precision and Wisdom
MULTIPLE
For All Urban Transport
Applications
BEST CONFIGURATION,
AMAZING SMART OPERATION
Developed in collaboration with Italy’s Pininfarina, this model features upright A-pillar, innovative streamlined
deflector, concealed antenna and wipers, plus crystal LED headlights with daytime running lights. It also
carries the industry's widest 2040mm cab with a completely flat floor and pass-through sleeper berth.
Left Hand Driving
Right Hand Driving
prev
next
prev
next
Superior Economy
Superior Reliability
Superior Adaptability
A Profitable Investment
1.Annual Distance Covered
2.Diesel Price
3.Electricity Price
4. Result
Start by filling in your project details below.
Annual Distance Covered
km/year
Diesel Price
$/L
Electricity Price
$/kWh
Cost Saving
120
CO₂
t
Carbon Reducing
500
* The results of this simulation are estimates that are based on your input and look at a period over five years. The calculation was based on: Diesel consumption: 12.0 L/100 km, power consumption: 33.0 kWh/100 km. The consumption may vary in specific applications. It depends on many factors, such as vehicle equipment, load, route profile, speed, driver’s driving style, tyres, weather conditions and more. The calculation tool and its results in no way constitute an assurance or warranty on the part of SANY Truck or any other company. All stated prices and costs excluding VAT and in US$.

*The CO₂ savings potential was determined internally under the following specific conditions and may deviate from the values determined in accordance with Regulation GB/T 37340-2019. This information is not legally binding. The estimate is based on a well-to-wheel analysis (WTW) and only takes into account carbon dioxide (CO₂) emissions.
Smart Technology: Wire-controlled chassis—Lightning-fast response, Precision-tuned performance, Safety and reliability.
Safe keeper: EPB and Auto-hold come as standard configuration, optional features include AEBS, FCW, LDW, 360° surround view, fatigue monitoring, etc.
Rigorous Testing: 300,000 km endurance testing–far exceeding industry standards, with zero critical failures.

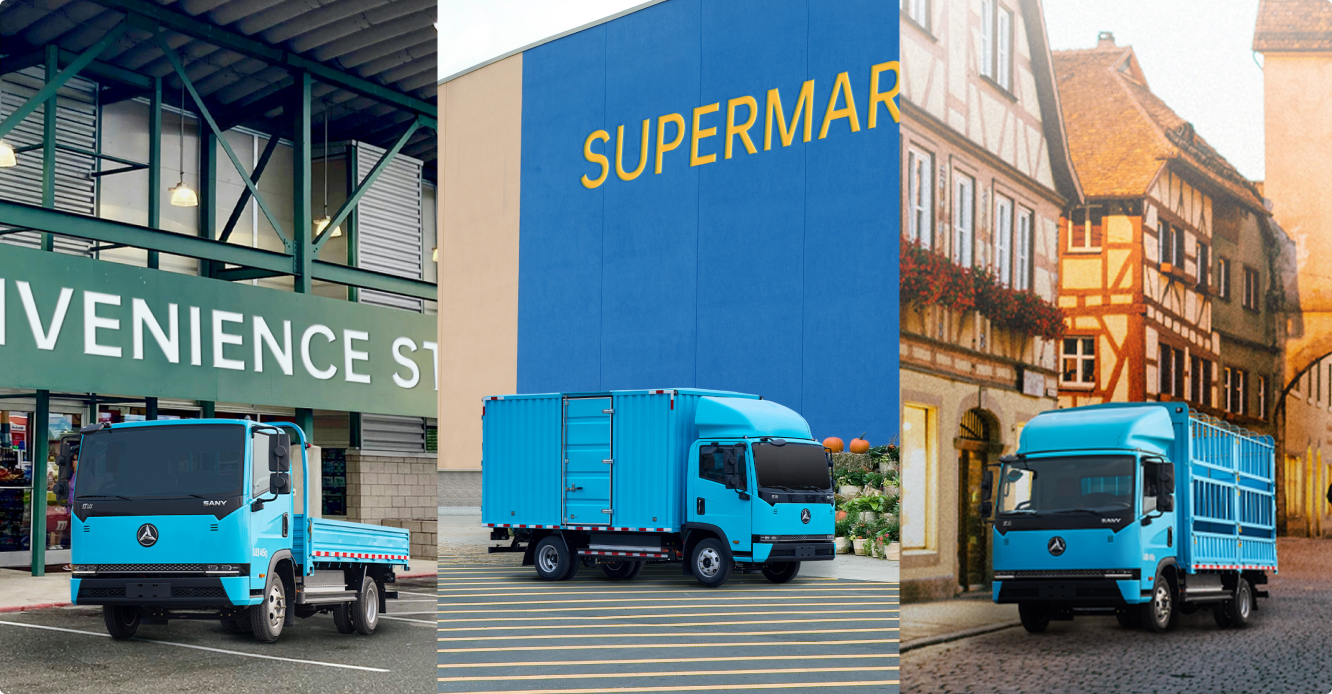

With extraordinary flexibility, it adapts to all scenarios of urban transportation:
Express Delivery, Supermarket Distribution, Department Store, LTL Shipping, Cold Chain Assurance.
SPECIFICATION
Model
Left Hand Driving
Right Hand Driving
6 Ton 85kWh
6 Ton 106kWh
6 Ton 106kWh
Refrigerated
10 Ton 215 kWh
6 Ton 85kWh
10 Ton 215 kWh
Class Ⅱ
Chassis Externa
Idimensions(mm)

5975×2085x2285

5975×2170×2285

-

5975×2170×2315

5975×2085×2285

5975×2170×2315
Box-type Cargo
Container Externa
Idimensions(mm)
Aluminum Alloy
Cargo Box
5,995×2,185×3,120
Aluminum Alloy
Cargo Box
5,995×2,185×3,120
Refrigerated
Container
6,130×2,240×3,200
Aluminum Alloy
Cargo Box
5,995×2,450×3,350
Aluminum Alloy
Cargo Box
5,995×2,185×3,120
Aluminum Alloy
Cargo Box
5,995×2,450×3,350
Wheelbase(mm)
3,360
3,360
3,360
3,360
3,360
3,360
Class Ⅱ Chassis Weight(kg)
2,335
2,525
3,700
2,310
3,700
GVW(kg)
6,000
6,000
6,000
10,000
6,000
10,000
Maximum Speed(km/h)
90
90
90
110
90
110
Urban Combined
Driving Range (km)
240
300
260
500
240
500
Charging Time
20%-80%≤40min
20%-80%≤40min
20%-80%≤40min
20%-80%≤48min
20%-80%≤40min
20%-80%≤48min
Rated/Peak Power(kW)
60/115
60/115
60/115
92/200
60/115
92/200
Rated/Peak Torque(N.m)
135/350
135/350
135/350
210/450
135/350
210/450
