Range

500KM+

Max Horsepower

610HP

Hydrogen Tank

55KG

Tailpipe Emissions

0

Hydrogen Refueling Time

 5-10mins

Energy Cleaner
-
· Hydrogen is a clean energy resource, with water as the only byproduct during
conversion—free from carbon or other greenhouse gas emissions.
· Hydrogen consumption under high speed standard load operation is as low as 0.1kg/km.
The integrated thermal management system reduces energy consumption by 10%,
greatly achieving energy conservation and emission reduction.
Drive Faster
+
· Delivers maximum output of 610hp and 30% gradeability.
· Peak power: 455kW | Peak torque: 2,600Nm.
· High-power and high-torque electric drive system ensures unmatched dynamic performance.
Perform Better
+
· 500km+ range under high speed standard load operation.
· 5-10-minute refueling time for minimal downtime.
· High-tensile lightweight hydrogen storage frame reduces weight by 15% without compromising payload capacity.

The Truck, Safety Comes First

Where Advanced Technology Meets Unmatched Safety Standards

More Reliable

Validated through extreme mileage durability enhancement test,environmental adaptability calibration under extreme temperature (-35~45°), high-altitude performance test, and other verifications.

More Secure

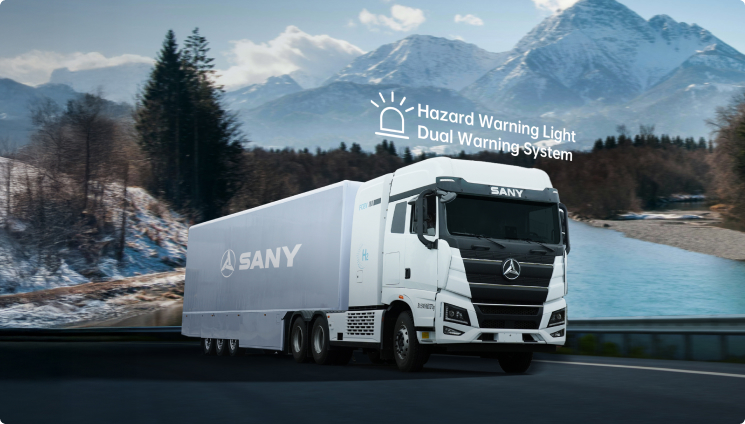

Equipped with hazard warning lights, dual-alert systems, and real-time fault diagnosis with interactive feedback. AI-powered control strategies proactively mitigate risks, ensuring safe and comfortable journeys.

Zero Compromises

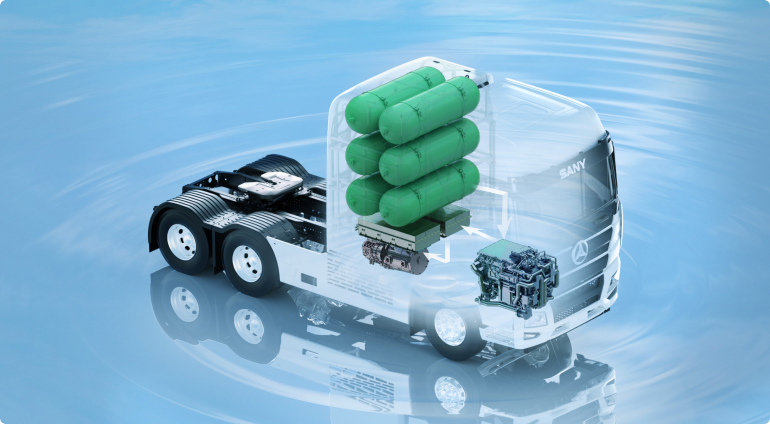

Type III Hydrogen Storage Tank: Rated hydrogen storage pressure of 35 MPa, featuring an aluminum alloy liner fully wrapped in carbon fiber; hydrogen tanks have conducted drop, collision, and ballistic impact tests.

Self-Developed Fuel Cell Battery Management System: Intelligent diagnostic control system, precise hydrogen regulation, and automatic safety protection against hydrogen leakage.

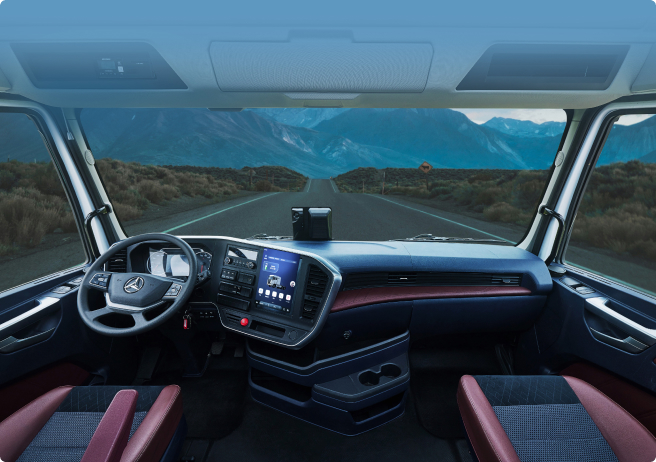

THE TRUCK, STYLISH AND COMFORTABLE
High-roof cabin (over 1.9m) – A commanding yet sleek exterior. Zero-stress
living space – Unparalleled comfort for every mile on the road.
prev
next

SPECIFICATION

Vehicle model
HQC42503SWFCEV1
Maximum Speed (km/h)
89
Drive Type
6x4
Wheelbase (mm)
3,950+1,350
Curb weight (kg)
11,500
Endurance
Under Standard Load and High-Speed Operating Conditions
500km
Hydrogen Fuel Cell System
≥200kW
Onboard Hydrogen Storage System
Cylinder Type
Working Pressure
385L*6
35MPa
